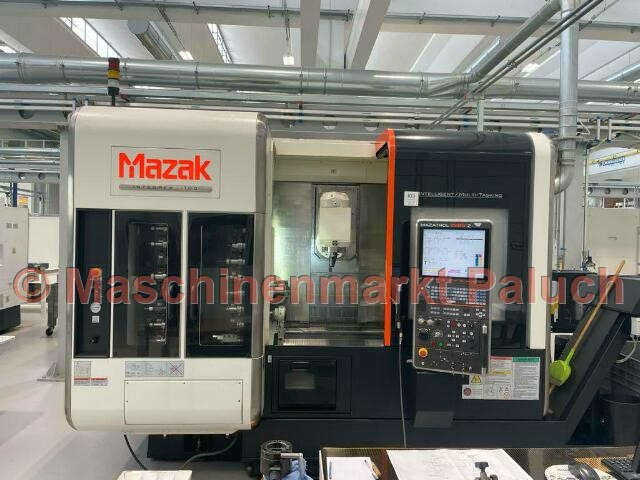

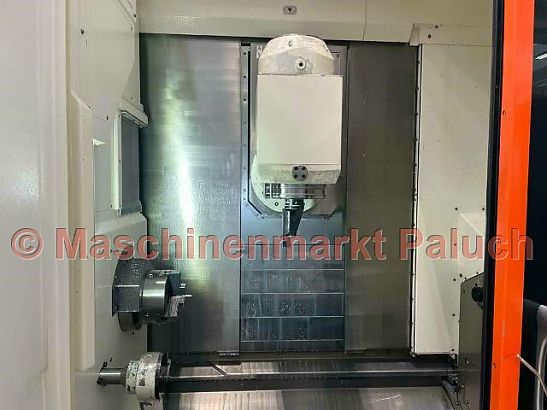

MAZAK Integrex i-100
Inventory Number
1553
Machine Type
CNC-Lathe
Year of Construction
2014
Control
Mazatrol MATRIX II
Technical data
Work-capacity
Max. swing diameter
530
mm
Max. machining diameter
500
mm
Max. machining length
519
mm
Max. bar material diameter
51
mm
Main-spindle
Spindle speed
35-6.000
RPM
Main spindle motor
11
kW
Max. torque
143
Nm
Spindle nose
A2 – 5
''
Spindle bore
61
mm
Spindle indexing increments
0,0001
°
Rotary tools
Type of turning / milling spindle:
Einzelspindel mit ATC
Tool Receiver
CAPTO C6
Spindle speed
15-12.000
RPM
Power
7,5
kW
Max. torque
49,4
Nm
Tool magazine
Turret tool capacity
72
Max. tool weight
5
kg
Max. tool length
250
mm
Travel
X-axis stroke
450
mm
Z-axis stroke
569
mm
Y-axis stroke
+/- 210
mm
W-axis stroke
-30° ~ 210°
mm
Feedrate
Rapid traverse rate:
X-axis
40
m/min
Z-axis
50
m/min
Y-axis
40
m/min
W-axis
8
m/min
Tailstock
Tailstock center
MK4
Tailstock travel
807
mm
Machine-data
Electrical power supply
26,21
KVA
Machine weight
9.200
kg
Machine size (L x B x H), approx.
3,00 x 2,50 x 2,50
m
Accessories
Normal equipment

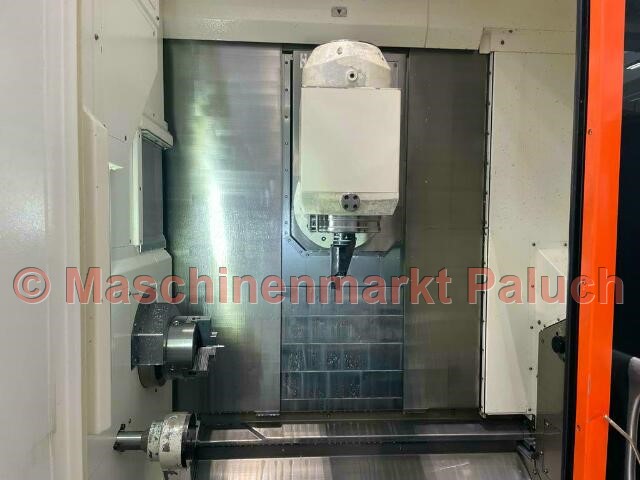

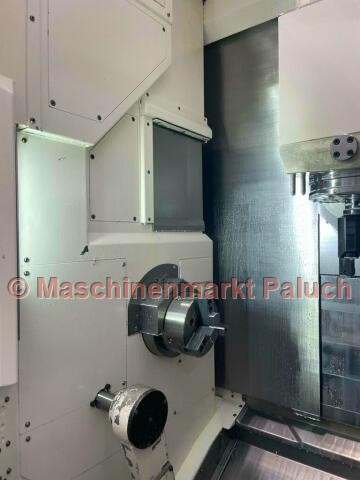

- Hydr. KITAGAWA hydraulic-chuck BB-206, diameter 169 mm
- B - axis (0.0001° positioning)
- C - axis (0.0001 °)
- Y - axis
- Double foot switch for opening / closing the chuck
- Feedback of the feed state (opened / closed)
- Tool presetter (MAZAK Tool Eye System)
- Front door lock
- Coolant supply through the milling head
- complete coolant system
- Coolant and chip protection through
- fully enclosed working space
- Work area lighting
- User macro (600 variables)
- MAZAK tapping / drilling cycle
- EIA / ISO input function
- Additional EIA / ISO functions
- Reverse time feed G93
- Optional stop (optional stop)
- MAZACC-2D Software Workpiece
- shape compensation
- Additional workpiece coordinate systems 300 pieces
- Tapping Function
- Polar coordinate input (G122)
- Drawing data direct input function
- EIA / ISO drilling cycles
- CARDBUS interface
- LAN interface
- USB interface
- Active vibration control
- Intelligent heat shield
- Intelligent danger shield
- MAZAK language support
- Virtual editing
- Intelligent Maintenance Support
- documentation
Optional equipment
- Tool magazine for 72 tools (CAPTO C6)
- Automatic parts catcher
- High pressure coolant 15 bar
- Milling spindle synchronized tapping
- Indicator lamp for machining status
- Milling spindle synchronized thread cutting
- MAYFRAN chip conveyor
