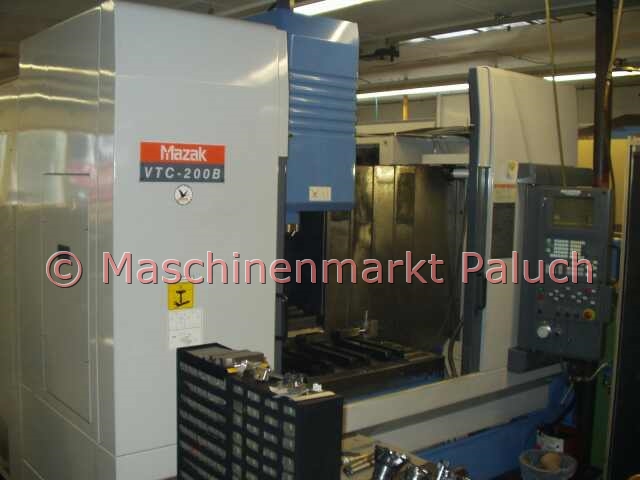

MAZAK VTC-200B
Inventory Number
1393
Machine Type
CNC-Machining Center – Vertical
Year of Construction
2000
Control
Mazatrol PC Fusion CNC 640M
Technical data
Worktable
Table size
510 x 1.460
mm
Max. table load
800
kg
Clearances between:
T-slots
5
count
T-slot spacing
100
mm
Slot width
18
mm
Travel
X-axis stroke
1.120
mm
Y-axis stroke
510
mm
Z-axis stroke
510
mm
Feedrate
Rapid traverse rate:
X/Y/Z-axis
30
m/min
Cutting feed rate
1 - 8.000
mm/min
Distance from spindle nose to table top
180~690
mm
Spindle
Spindle speed
40 - 10.000
RPM
Tool shank
CAT 40
Main spindle motor
15
kW
Max. torque
98
Nm
Tool magazine
Turret tool capacity
24
max. tool diameter
80
mm
Max. tool diameter with adjacent tool pockets empty
110
mm
Max. tool length
350
mm
Max. tool weight
8
kg
Machine-data
Electrical power supply
22,7
KVA
Machine weight
6.000
kg
Machine size (L x B x H), approx.
ca. 2,90 x 2,90 x 2,80 m
m
Accessories
Normal equipment
- MAZAK Monitoring system C
- Machining navigation
- PCMCIA Interface
- Coolant System
- Fully automatic tool setting
- Work light
- Manuals
Optional equipment
- High-pressure coolant through spindle
- Interface Set
- Synchronized tapping
- Chip conveyor
