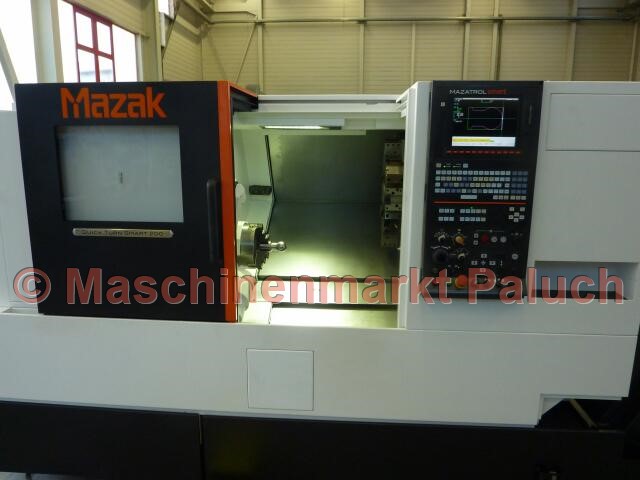

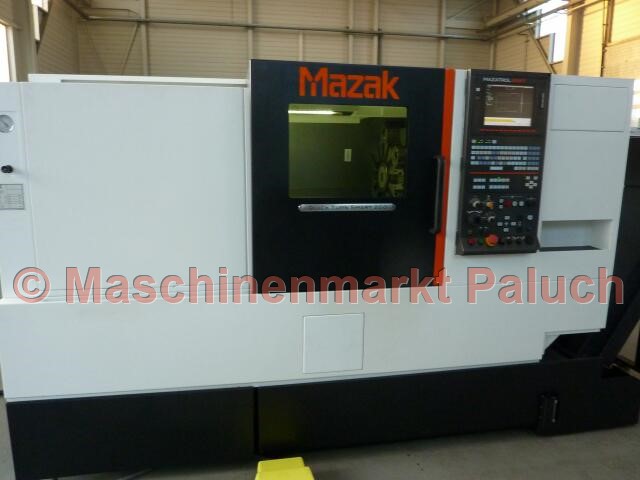

MAZAK Quick Turn Smart 200 Universal 500
Inventory Number
1631
Machine Type
CNC-Lathe
Year of Construction
2012

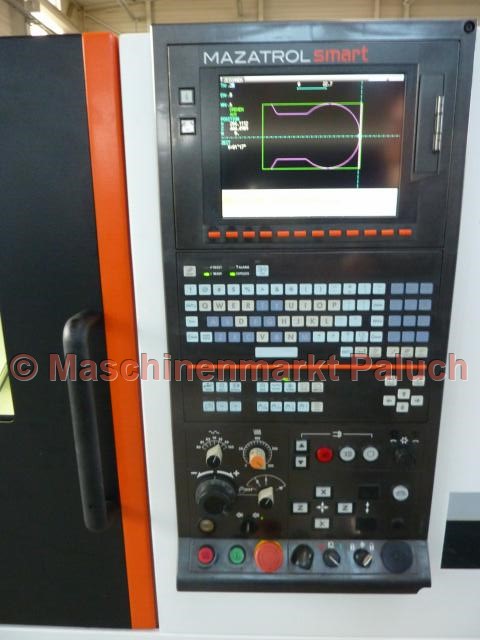

Control
Mazatrol Smart
Technical data
Work-capacity
Max. swing diameter
660
mm
Max. machining diameter
350
mm
Max. machining length
541
mm
Max. bar material diameter
65
mm
Main-spindle
Spindle speed
35 - 5.000
RPM
Main spindle motor
15
kW
Torque
233
Nm
Spindle nose
A2 - 6
''
Spindle bore
76
mm

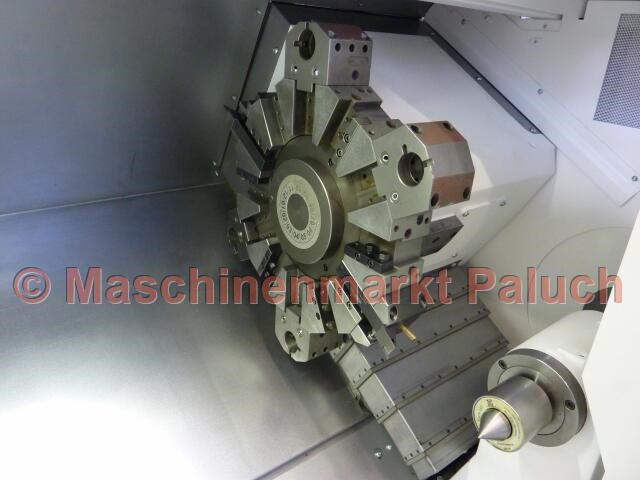

Turret
Turret tool capacity
12
Travel
X-axis stroke
195
mm
Z-axis stroke
560
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Z-axis
33
m/min

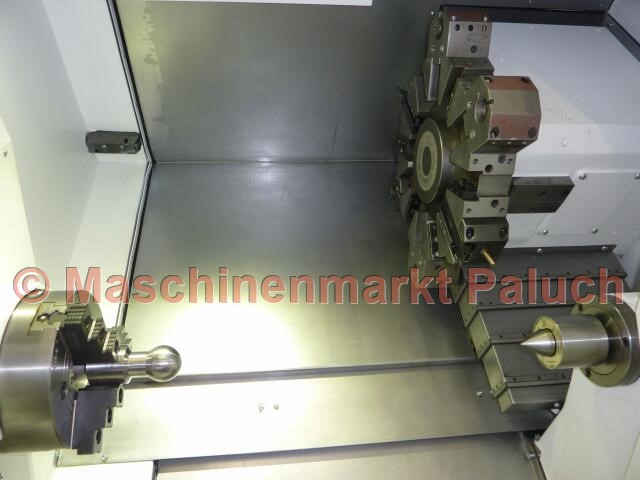

Tailstock
Tailstock center
MK 5
Tailstock travel
565
mm
Machine-data
Electrical power supply
29,1
KVA
Machine weight
4.500
kg
Machine size (L x B x H), approx.
2,70 x 1,80 x 1,80
m
Accessories
Normal equipment

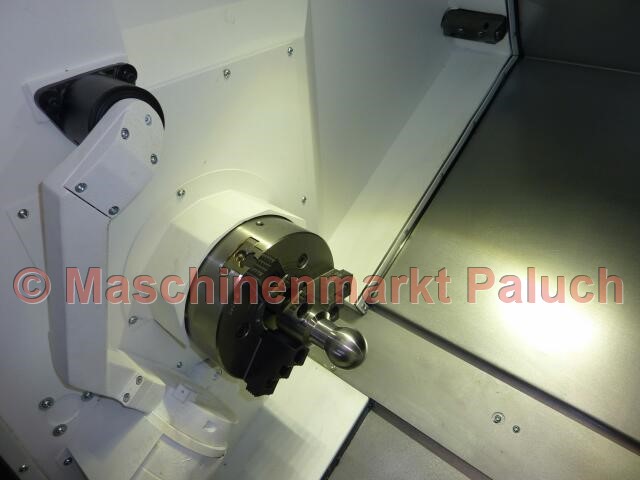

- KITAGAWA hydraulic-chuck BB-208, diameter 210 mm
- Tool setter (MAZAK Tool Eye System)
- Double foot switch to open/close
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Programmable tailstock
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- EIA/ISO
- Tool check as background function
- Navigation monitoring display
- USB interface 2 pieces
- LAN interface
- Intelligent heat shield
- Intelligent danger shield
- Mazak language support
- Virtual editing
- Documentation
Optional equipment
- High pressure coolant
- MAYFRAN chip conveyor
- Some tool holders for 12-station drum turret
