MAZAK VTC-300C-II
Inventory Number
1394
Machine Type
CNC-Machining Center – Vertical
Year of Construction
2004
Control
Mazatrol PC Fusion CNC 640M
Technical data
Worktable
Table size
760 x 2.000
mm
Max. table load
1.400
kg
Clearances between:
Distance from spindle nose to table top
180 ~ 840
mm
Column front to spindle center
860
mm
Travel
X-axis stroke
1.740
mm
Y-axis stroke
760
mm
Z-axis stroke
660
mm
Feedrate
Rapid traverse rate:
X/Y/Z-axis
36
m/min
Cutting feed rate
1 - 8.000
mm/min
Spindle
Spindle speed
40 - 12.000
RPM
Tool shank
CAT 40
Main spindle motor
18,5
kW
Tool magazine
Turret tool capacity
30
max. tool diameter
80
mm
Max. tool diameter with adjacent tool pockets empty
110
mm
Max. tool length
350
mm
Max. tool weight
8
kg
Machine-data
Electrical power supply
22
KVA
Machine weight
10.500
kg
Machine size (L x B x H), approx.
4,50 x 3,50 x 3,10
m
Accessories
Normal equipment
- MAZAK Monitoring system C
- Machining navigation
- PCMCIA Interface
- Coolant System
- Fully automatic tool setting
- Work light
- Manuals
Optional equipment
- High-pressure coolant through spindle system 15 bar
- Synchronized tapping
- CNC options-package Performance
- Drilling cycle
- Preparation for MAZAK Monitoring system B

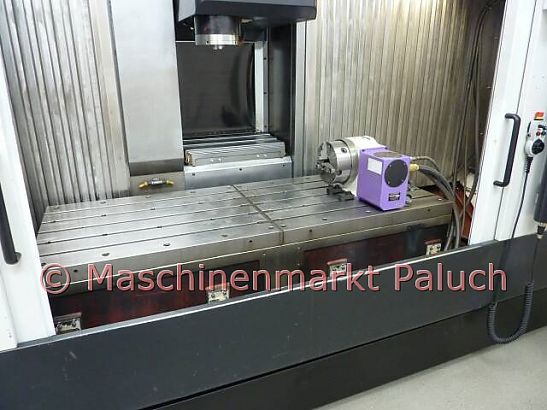

- KITAGAWA NC rotary table, Type: MR 250
