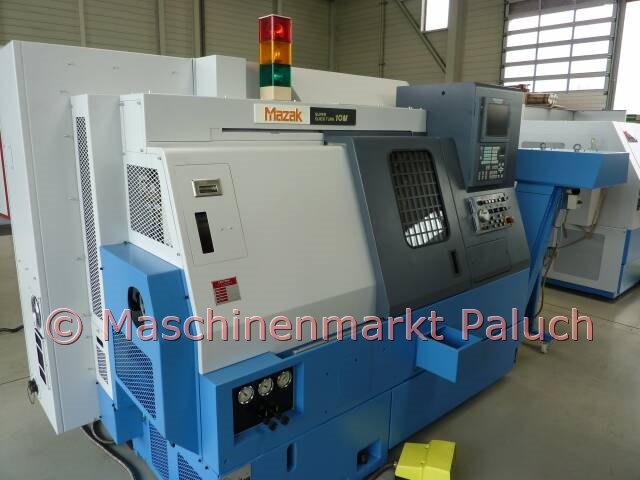

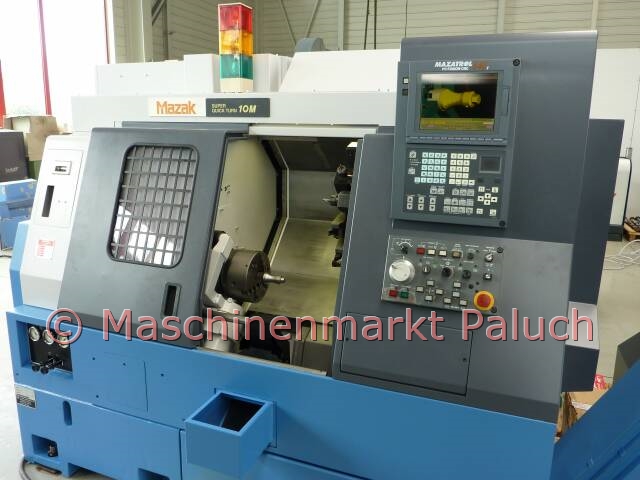

MAZAK Super Quick Turn 10M
Inventory Number
1399
Machine Type
CNC-Lathe
Year of Construction
2000
Control
Mazatrol PC Fusion CNC 640T
Technical data
Work-capacity
Max. swing diameter
435
mm
Max. machining diameter
230
mm
Max. machining length
305
mm
Max. bar material diameter
42
mm

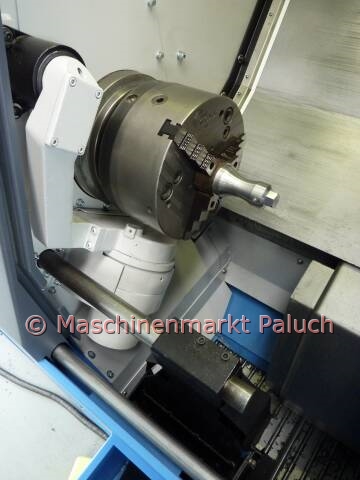

Main-spindle
Spindle speed
35-6.000
RPM
Main spindle motor
11
kW
Max. torque
96
Nm
Spindle nose
A2 – 5
''
Spindle bore
52
mm
Spindle indexing increments
0° – 360°/0,001
°

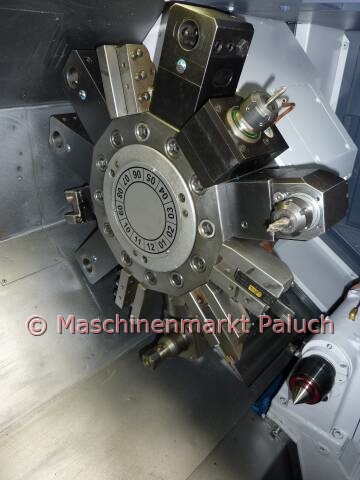

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
120-3.000
RPM
Power
2,2
kW
Max. torque
20,6
Nm
Travel
X-axis stroke
160
mm
Z-axis stroke
360
mm
Feedrate
Rapid traverse rate:
X/Z-axis
30
m/min
C-axis
400
RPM
Cutting feed rate
X/Z-axis
0 - 5.000
mm/min
C-axis
1 - 2.000
°/min
Tailstock
Tailstock quill stroke
75
mm
Tailstock center
MK 4
Tailstock travel
275
mm
Machine-data
Electrical power supply
32
KVA
Machine weight
ca. 3.600
kg
Machine size (L x B x H), approx.
2,50 x 1,50 x 1,90
m
Accessories
Normal equipment
- KNC-N-210 hydraulic-chuck, diameter 210 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close the chuck
- Chuck status feedback (open/closed)
- Tailstock
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Tool check as background function
- Navigation monitoring display
- PCMCIA port
- IC Port
- Interface for MAZATROL DATA TRANSFER
- Documentation
Optional equipment
- Interface for barfeeder
- Automatic parts catcher
- Programmable tailstock
- Synchronized tapping by rotary tool
- High pressure coolant
- MAYFRAN chip conveyor
- 10 pieces static tool holders
- 2 pieces rotary tool holders
