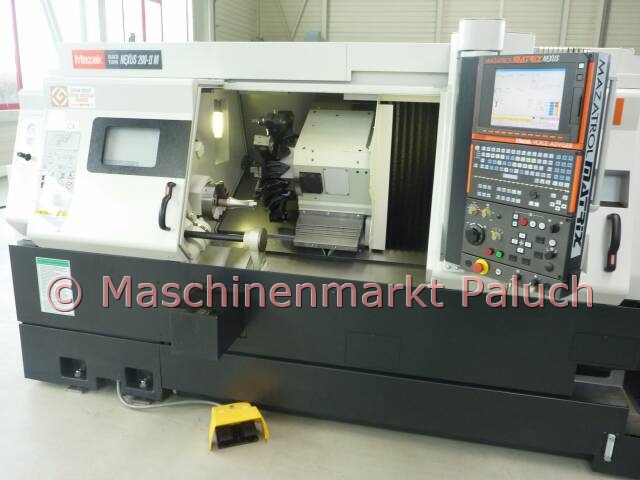

MAZAK Quick Turn Nexus 200-II M Universal 1000

Inventory Number
1287
Machine Type
CNC-Lathe
Year of Construction
2008
Control
Mazatrol Matrix

Technical data

Work-capacity

Max. swing diameter
675 mm
Max. machining diameter
380 mm
Max. machining length
1.048 mm
Max. bar material diameter
65 mm

Main-spindle

Spindle speed
35 - 5.000 RPM
Main spindle motor
26 kW
Max. torque
465 Nm
Spindle nose
A2 – 6 ''
Spindle bore
76 mm
Spindle indexing increments
0° - 360°/0,001 °

Turret

Turret tool capacity
12

Travel

X-axis stroke
230 mm
Z-axis stroke
1.058 mm

Feedrate

Rapid traverse rate:
X-axis
30 m/min
Z-axis
33 m/min

Tailstock

Tailstock center
MK 5
Tailstock travel
1.058 mm

Machine-data

Electrical power supply
46,8 KVA
Machine weight
5.700 kg
Machine size (L x B x H), approx.
3,50 x 1,90 x 2,00 m

Accessories

Normal equipment

  • KITAGAWA  hydraulic-chuck B-208, diameter 210 mm
  • Tool setter (MAZAK Tool Eye System)
  • C-axis
  • Double foot switch to open/close the chuck
  • Automatic opening/closing of chuck
  • Chuck status feedback (open/closed)
  • Programmable tailstock
  • Front door lock
  • Compl. Coolant system
  • Coolant and chip protection due to fully enclosed workspace
  • Workspace illumination
  • Synchron-tapping
  • PCMCIA port
  • Tool check as background function
  • Documentation

Optional equipment

  • Interface for barfeeder
  • Automatic parts catcher
  • Synchronized tapping by rotary tool
  • High pressure coolant
  • Chip conveyor
  • 10 pieces static tool holders
  • 2 pieces rotary tool holders
