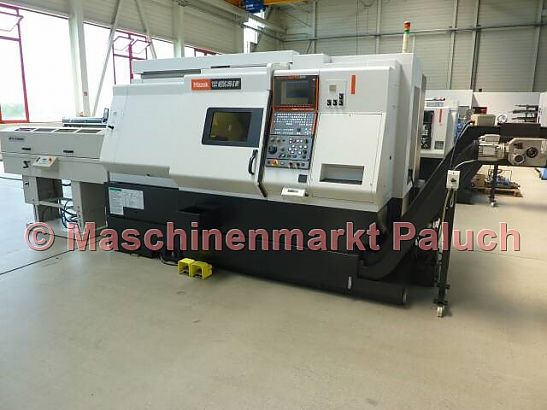

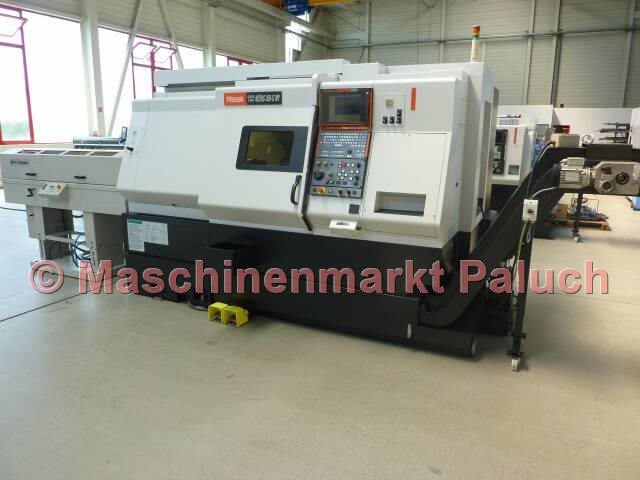

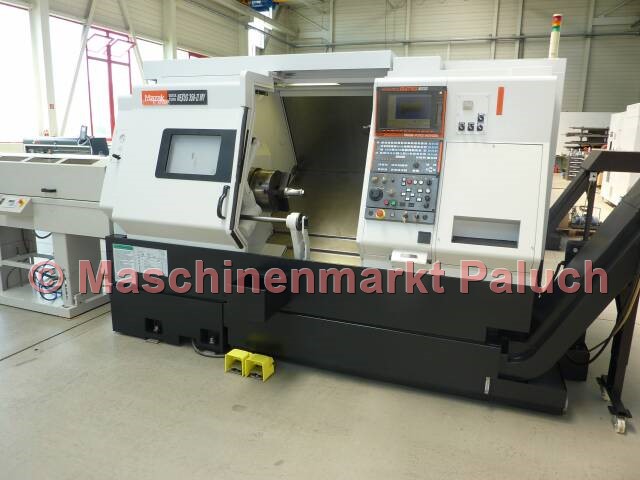

MAZAK Quick Turn Nexus 350-II MY Universal 650

Inventory Number
1464
Machine Type
CNC-Lathe
Year of Construction
2008

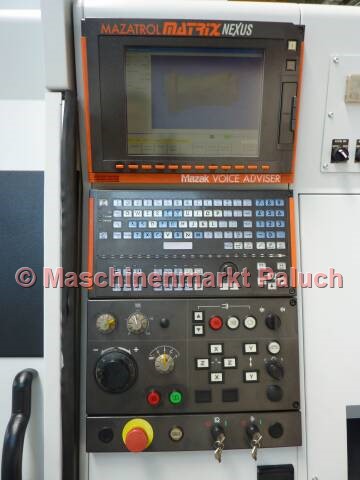

Control
Mazatrol Matrix

Technical data

Work-capacity

Max. swing diameter
750 mm
Max. machining diameter
420 mm
Max. machining length
603 mm
Max. bar material diameter
90 mm

Main-spindle

Spindle speed
35 - 3.300 RPM
Main spindle motor
30 kW
Torque
808 Nm
Spindle nose
A2 - 11 ''
Spindle bore
112 mm
Spindle indexing increments
0 - 360° / 0,001 °

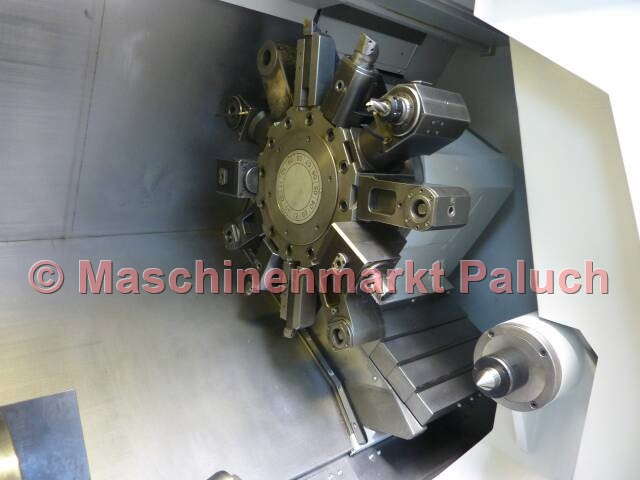

Turret

Turret tool capacity
12

Rotary tools

Spindle speed
25 – 4.500 RPM
Power
7,5 kW
Max. torque
95 Nm

Travel

X-axis stroke
260 mm
Y-axis stroke
150 (+/- 75) mm
Z-axis stroke
670 mm

Feedrate

Rapid traverse rate:
X-axis
30 m/min
Y-axis
15 m/min
Z-axis
33 m/min
C-axis
555 RPM

Cutting feed rate

X/Y/Z-axis
0 - 2.000 mm/min

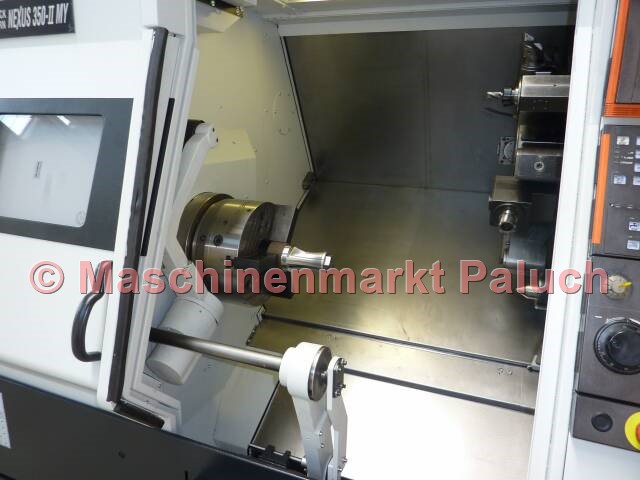

Tailstock

Tailstock center
MK 5
Tailstock travel
645 mm

Machine-data

Electrical power supply
44,9 KVA
Machine weight
7.700 kg
Machine size (L x B x H), approx.
3,40 x 2,20 x 2,20 m

Accessories

Normal equipment

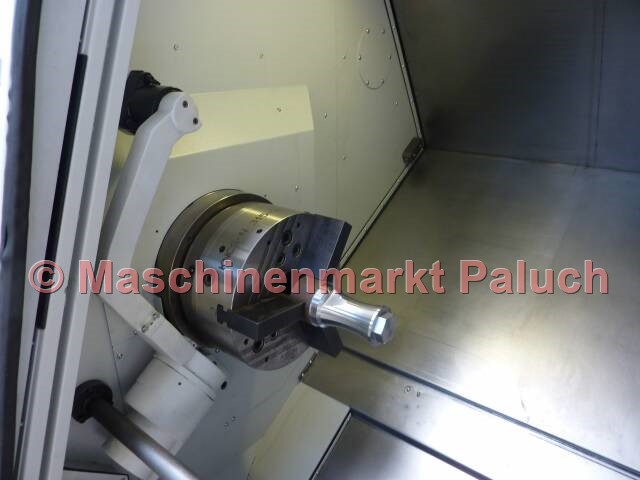

  • SMW hydraulic chuck KNCS 315-91, diameter 315 mm
  • Tool setter (MAZAK Tool Eye System)
  • C-axis
  • Y-axis
  • Double foot switch to open/close the chuck
  • Automatic opening/closing of chuck
  • Chuck status feedback (open/closed)
  • Front door lock
  • Compl. Coolant system
  • Coolant and chip protection through fully enclosed workspace
  • Workspace illumination
  • Synchronous tapping with milling spindle
  • User macro (600 variables)
  • MAZAK tapping / drilling cycle
  • Tornado in EIA / ISO
  • EIA / ISO input function
  • Optional stop (optional stop)
  • Tool test as background function
  • Tapping Function
  • Polar coordinate input (G122)
  • Drawing data direct input function
  • USB interface 2 pieces
  • LAN interface
  • Intelligent heat shield
  • Intelligent danger shield
  • MAZAK language support
  • Virtual editing
  • documentation

Optional equipment

  • MKE short barfeeder, type: HL 15 PN
  • Interface for barfeeder
  • Autom. parts catcher
  • Overload monitoring system
  • Auto opening / closing the front door
  • Auto power on / off including warm-up function
  • synchronous thread cutting for driven tools
  • Cylinder (G07) + polar interpolation (G12.1)
  • 3 lamps to indicate the processing status
  • High pressure coolant
  • MAYFRAN chip conveyor
  • 9 pieces static tool holders
  • 3 pieces rotary tool holders
