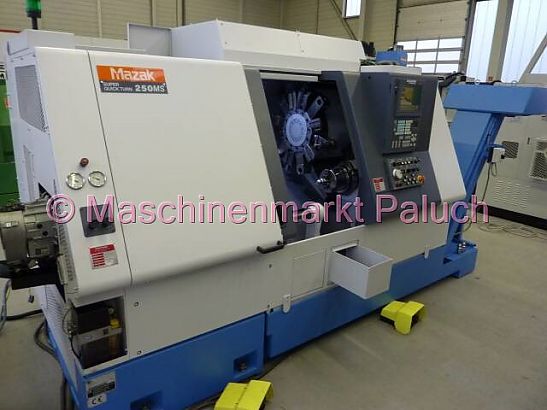

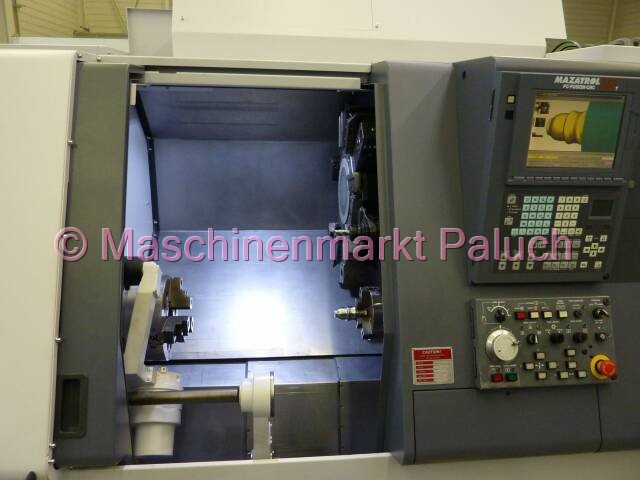

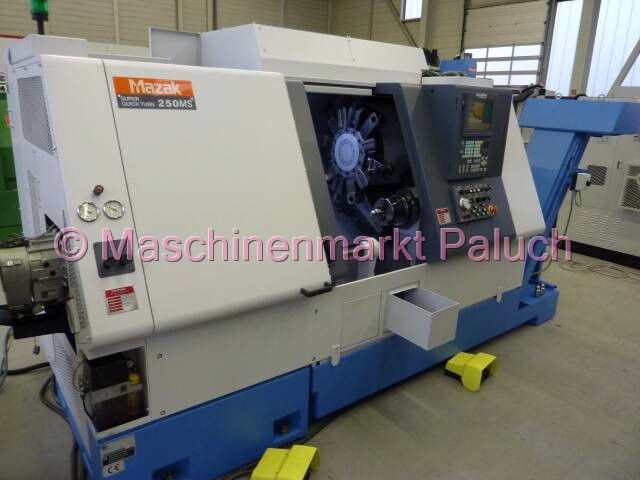

MAZAK Super Quick Turn 250MS
Inventory Number
1451
Machine Type
CNC-Lathe
Year of Construction
2000

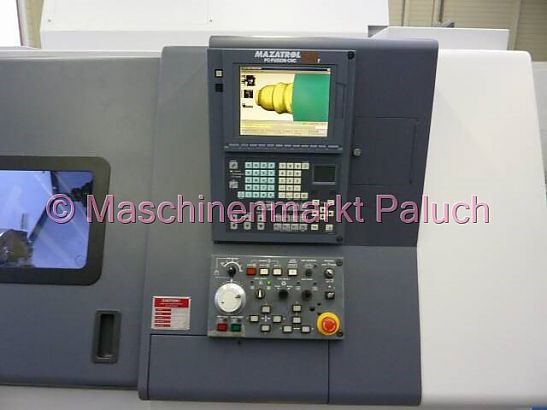

Control
Mazatrol PC Fusion CNC 640T
Technical data
Work-capacity
Max. swing diameter
525
mm
Max. swing diameter over cross-slides
350
mm
Max. machining diameter
300
mm
Max. bar material diameter
64
mm
Main-spindle
Spindle speed
35 – 4.000
RPM
Main spindle motor
18,5
kW
Max. torque
350
Nm
Spindle bore
76
mm
Spindle indexing increments
0° - 360°/0,001
°

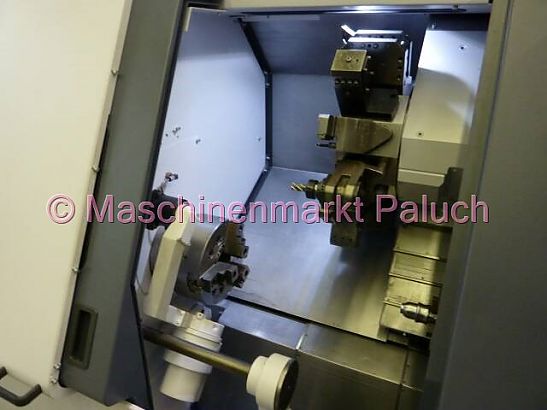

Second-spindle
Spindle speed
35 – 4.000
RPM
Power
7,5
kW
Max. torque
57
Nm
Spindle indexing increments
72 Positionen/5
°

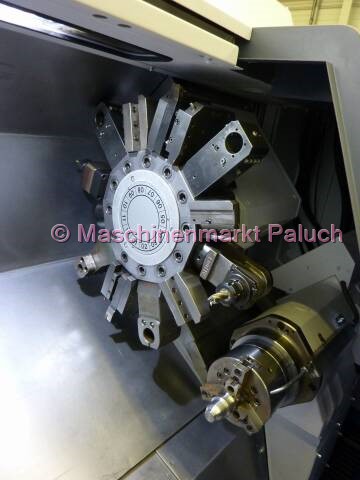

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25 – 4.500
RPM
Power
3,7
kW
Max. torque
35
Nm
Travel
X-axis stroke
190
mm
Z-axis stroke
575
mm
B-axis stroke
585
mm
Feedrate
X-axis
30
m/min
Z-axis
30
m/min
B-axis
18
m/min
Cutting feed rate
X/Z-axis
0 – 5.000
mm/min
Machine-data
Electrical power supply
40
KVA
Machine weight
5.450
kg
Machine size (L x B x H), approx.
3,45 x 1,80 x 2,00
m
Accessories
Normal equipment
- Hydr. KITAGAWA chuck B-210 for main spindle, diameter 254 mm
- Hydr. KITAGAWA chuck B-206 for second spindle, diameter 169 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close chuck for main and back spindle
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Synchron-tapping
- Tool check as background function
- Navigation monitoring display
- PCMCIA port
- IC Port
- Interface for MAZATROL DATA TRANSFER
- Documentation
Optional equipment

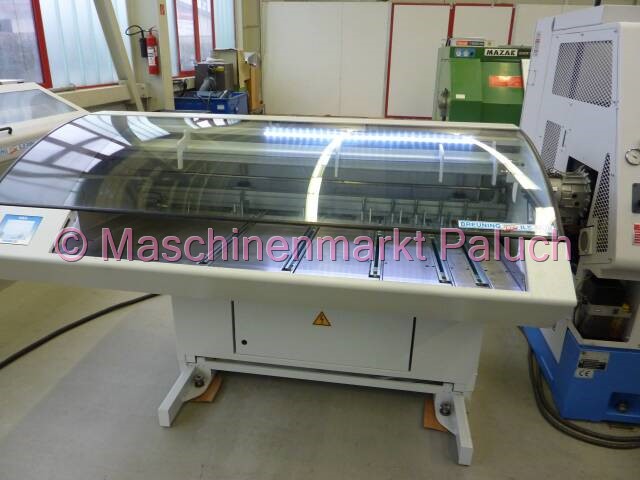

- IRCO barfeeder, Model: ILS-MUK-10016-III, YOM 2017
- Interface for barfeeder
- Autom. parts catcher
- Overload monitoring system
- Autom. Switch on / off including warm-up function
- Counter spindle equipped with ejector
- synchronous thread cutting for driven tools
- CNC option package EIA / ISO, content of the package:
- input / cancellation of the polar coordinate input (G122 / G123)
- User macro (100 variables G65-G67)
- user macro common variables (600)
- helix interpolation (EIA / ISO)
- EIA / ISO-input function
- input / cancellation of the polar
- Selection of the workpiece coordinate system
- Drawing data direct input function
- Indicating lamp for processing status
- High pressure coolant
- Band filter
- MAYFRAN Chip conveyor
- 10 pieces static tool holders
- 2 pieces rotary tool holders
