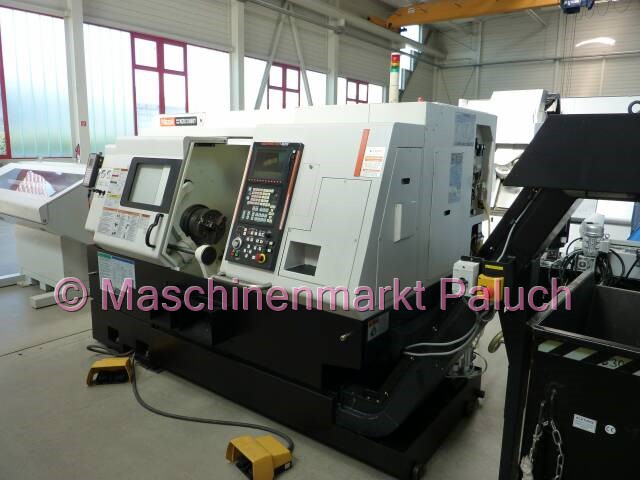

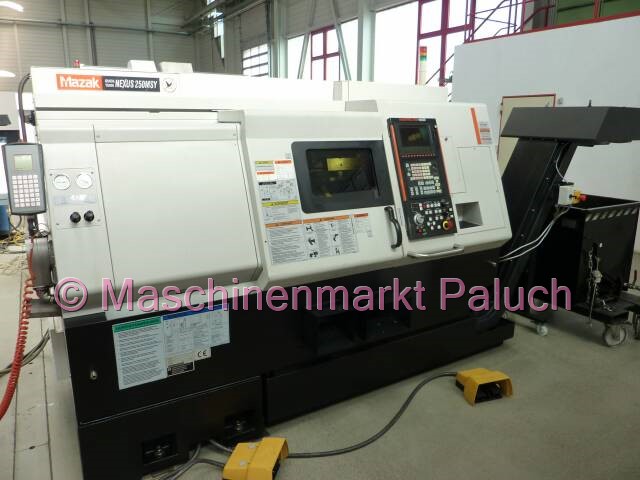

MAZAK Quick Turn Nexus 250MS-Y
Inventory Number
1440
Machine Type
CNC-Lathe
Year of Construction
2005
Control

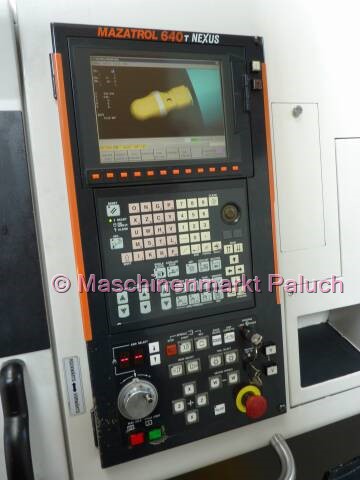

Mazatrol 640T Nexus
Technical data
Work-capacity
Max. swing diameter
675
mm
Max. machining diameter
350
mm
Max. machining length
504
mm
Max. bar material diameter
75
mm
Main-spindle
Spindle speed
35-5.000
RPM
Main spindle motor
26
kW
Max. torque
350
Nm
Spindle bore
88
mm
Spindle indexing increments
0,001
°

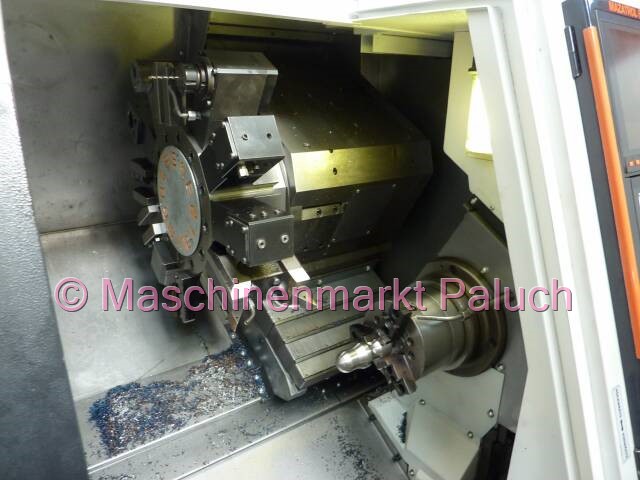

Turret
Turret tool capacity
12
Second-spindle
Spindle speed
35-6.000
RPM
Power
7,5
kW
Max. torque
75
Nm
Spindle indexing increments
0,001
°
Rotary tools
Spindle speed
25-4.500
RPM
Power
5,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
230
mm
Y-axis stroke
100
mm
Z-axis stroke
575
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Y-axis
21
m/min
Z-axis
33
m/min
X/Y/Z-axis
0-2.000
mm/min
Machine-data
Electrical power supply
41
KVA
Machine weight
ca. 5.400
kg
Machine size (L x B x H), approx.
2,85 x 1,90 x 1,85
m
Accessories
Normal equipment
- KITAGAWA hydraulic-chuck BB-210 for mainspindle, diameter 254 mm
- KITAGAWA hydraulic chuck B-206 for second spindle, diameter 169 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Y-axis
- Double foot switch to open/close chuck for main and back spindle
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Programmable tailstock
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Synchron-tapping
- User Macro (600 variables)
- MAZAK Tornado EIA/ISO
- EIA/ISO Input function
- Optional stop
- Tapping function
- Polar coordinate entry (G122)
- Direct data input function drawing
- USB Interface (x 2)
- LAN Interface
- Intelligent heat shield
- Intelligent danger sign
- MAZAK Language Support
- Virtual machining
- Documentation
Optional equipment
- Interface für barfeeder
- Autom. parts catcher
- Synchronized tapping by rotary tool
- High pressure coolant
- CROMAR chip conveyor
- 10 pieces static tool-holders
- 2 pieces rotary tool-holders
