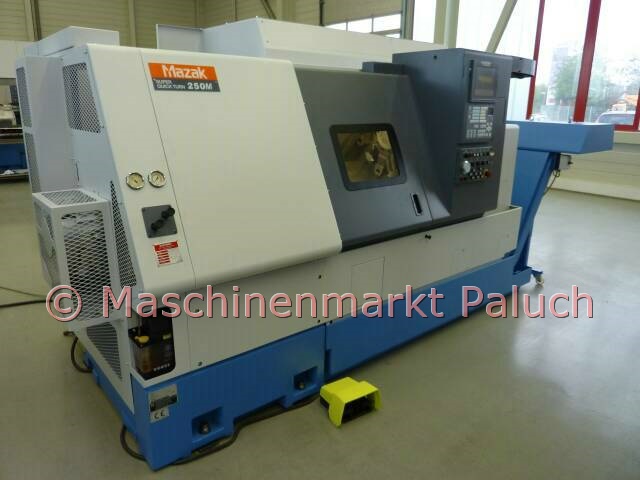

MAZAK Super Quick Turn 250M Universal 1000
Inventory Number
1381
Machine Type
CNC-Lathe
Year of Construction
2000
Control

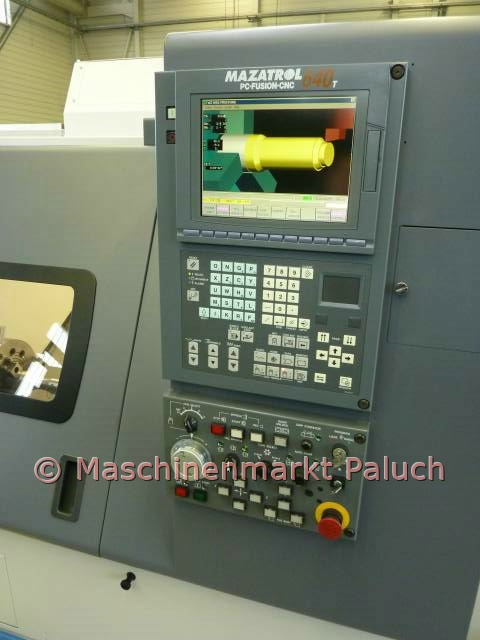

Mazatrol PC Fusion CNC 640T
Technical data
Work-capacity
Max. swing diameter
525
mm
Max. machining diameter
300
mm
Max. machining length
497
mm
Max. bar material diameter
64
mm
Main-spindle
Spindle speed
35-4.000
RPM
Main spindle motor
18,5
kW
Max. torque
350
Nm
Spindle nose
A2 – 6
''
Spindle bore
76
mm
Spindle indexing increments
0,001
°

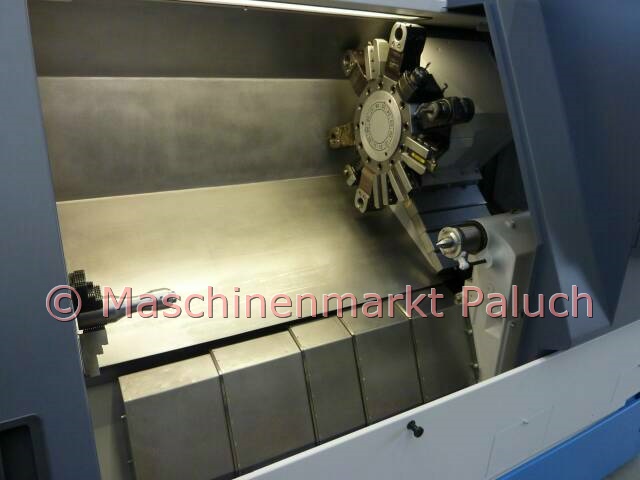

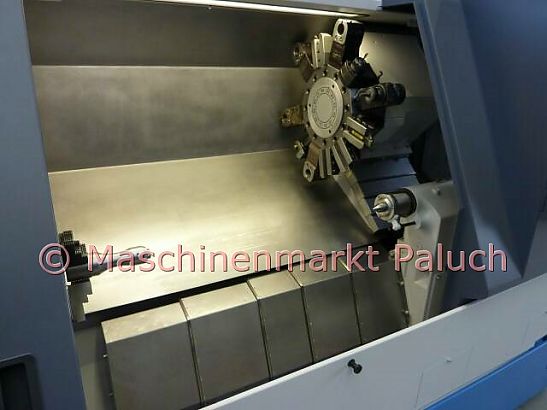

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
120-4.500
RPM
Power
3,7
kW
Max. torque
35
Nm
Travel
X-axis stroke
190
mm
Z-axis stroke
575
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Z-axis
30
m/min
C-axis
400
RPM
Cutting feed rate
X/Z-axis
0 - 5.000
mm/min
C-axis
1 - 2.000
°/min
Tailstock
Tailstock quill stroke
150
mm
Tailstock center
MK 5
Tailstock travel
400
mm
Machine-data
Electrical power supply
35
KVA
Machine weight
ca. 5.050
kg
Machine size (L x B x H), approx.
3,10 x 1,70 x 2,20
m
Accessories
Normal equipment

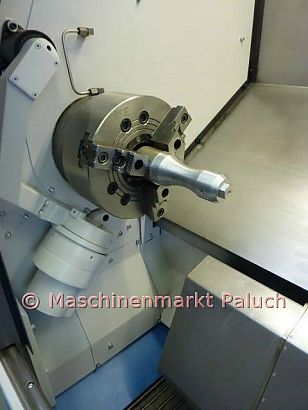

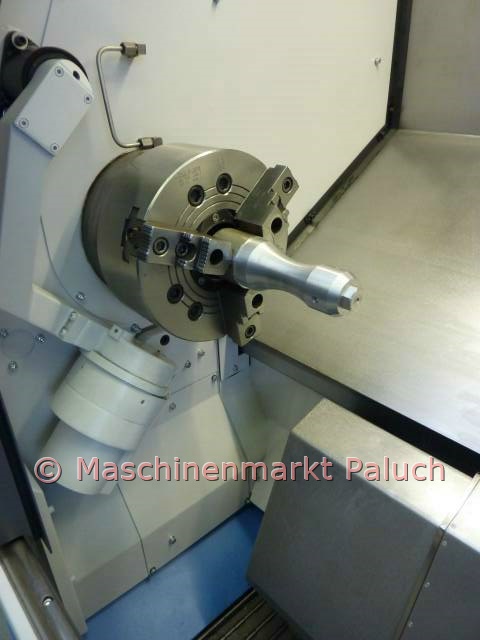

- KITAGAWA hydraulic-chuck B-208, diameter 210 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close the chuck
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Tailstock
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Synchron-tapping
- Tool check as background function
- Navigation monitoring display
- PCMCIA port
- IC Port
- Interface for MAZATROL DATA TRANSFER
- Documentation
Optional equipment
- Synchronized tapping by rotary tool
- CNC Performance option package, package contains:
- Application macro (600 variables)
- EIA/ISO input function
- Polar coordinate input (G122)
- Supplemental workpiece coordinate system
- Drawing data - direct input function
- High-pressure coolant

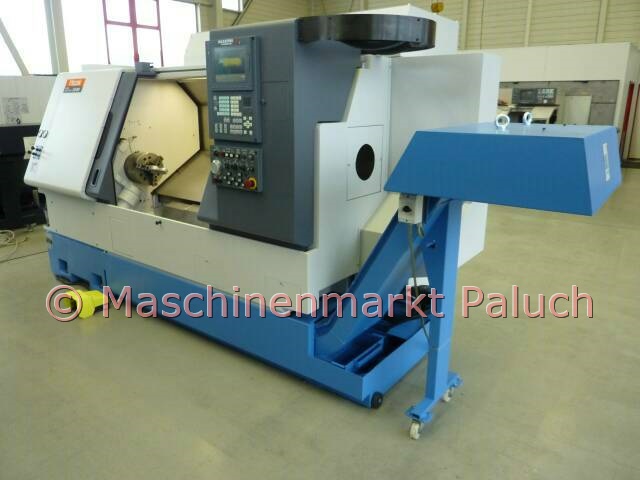

- MAYFRAN chip conveyor, side discharge
- 9 static tool holders
- 2 rotary tool holders
