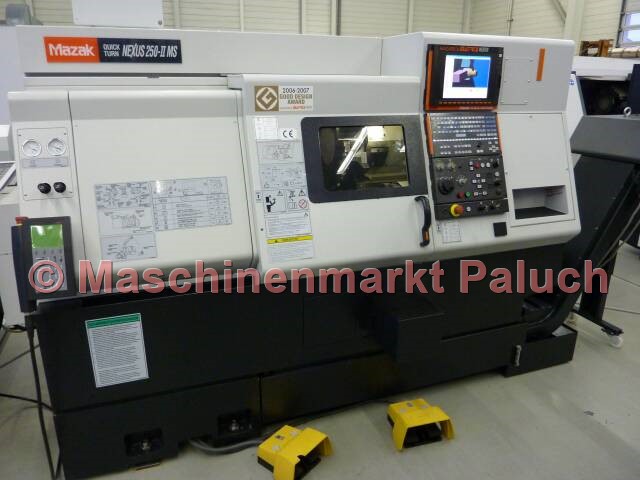

MAZAK Quick Turn Nexus 250-II MS
Inventory Number
1495
Machine Type
CNC-Lathe
Year of Construction
2010
Control

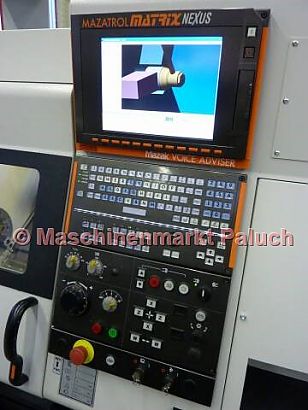

Mazatrol Matrix
Technical data
Work-capacity
Max. swing diameter
675
mm
Max. machining diameter
380
mm
Max. bar material diameter
74
mm
Main-spindle
Spindle speed
35 - 4.000
RPM
Main spindle motor
26
kW
Torque
465
Nm
Spindle nose
A2 - 8
''
Spindle bore
88
mm
Spindle indexing increments
0,001
°
Second-spindle
Spindle speed
35 - 6.000
RPM
Power
11
kW
Max. torque
89
Nm
Spindle indexing increments
0.001
°
Spindle nose
A2-5"
''
Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25 – 4.500
RPM
Power
5,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
230
mm
Z-axis stroke
575
mm
W-axis
585
m/min
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Z-axis
33
m/min
W-axis
30
m/min
C-axis
555
RPM
Machine-data
Electrical power supply
46,8
KVA
Machine weight
5.200
kg
Machine size (L x B x H), approx.
2,85 x 1,80 x 1,85
m
Accessories
Normal equipment
- Hydr. collet chuck for main spindle
- Hydr. collet chuck for second spindle
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close chuck for main and back spindle
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Synchron-tapping
- User macro (600 variables)
- EIA / ISO input function
- Optional stop (optional stop)
- Tool test as background function
- Tapping Function
- Polar coordinate input (G122)
- Drawing data direct input function
- USB interface 2 pieces
- LAN interface
- Intelligent heat shield
- Intelligent danger shield
- MAZAK language support
- Virtual editing
- documentation
Optional equipment
- Interface for barfeeder
- Automatic parts catcher
- Synchronized tapping by rotary tool
- High pressure coolant
- chip conveyor
- 8 pieces static tool holders
- 2 pieces rotary tool holders
