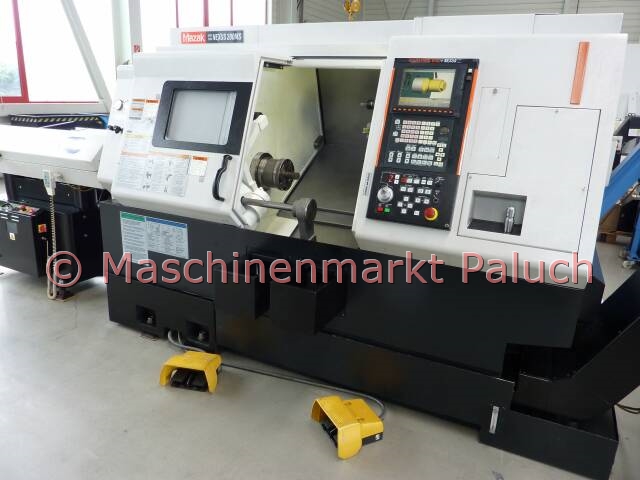

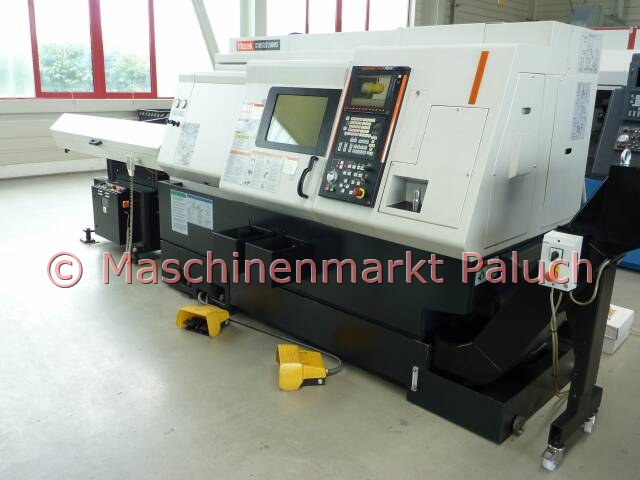

MAZAK Quick Turn Nexus 200MS

Inventory Number
1401
Machine Type
CNC-Lathe
Year of Construction
2006
Control

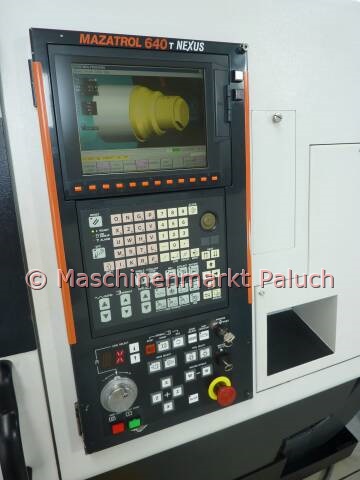

Mazatrol 640T Nexus

Technical data

Work-capacity

Max. swing diameter
675 mm
Max. machining diameter
380 mm
Max. machining length
511 mm
Max. bar material diameter
65 mm

Main-spindle

Spindle speed
35 – 5.000 RPM
Main spindle motor
26 kW
Max. torque
350 Nm
Spindle bore
76 mm
Spindle indexing increments
0,001 °

Second-spindle

Spindle speed
35 – 6.000 RPM
Power
10 kW
Max. torque
75 Nm
Spindle indexing increments
0,001 °

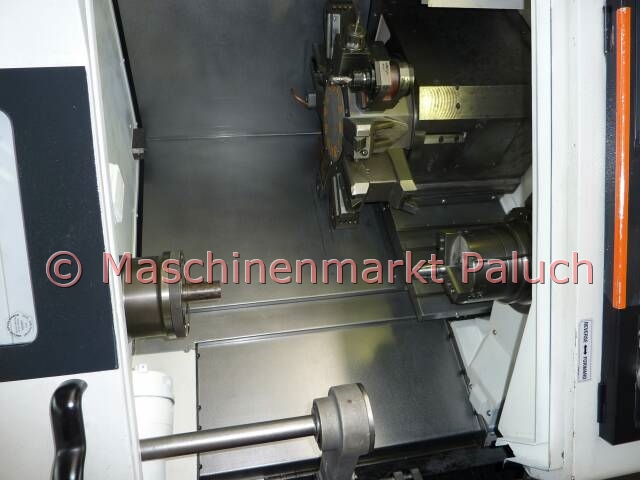

Turret

Turret tool capacity
12

Rotary tools

Rotary tool spindle speed
25 – 6.000 RPM
Power
5,5 kW
Max. torque
35 Nm

Travel

X-axis stroke
230 mm
Z-axis stroke
575 mm

Feedrate

X-axis
30 m/min
Z-axis
33 m/min

Cutting feed rate

X/Z-axis
0 - 2.000 mm/min

Machine-data

Electrical power supply
46,2 KVA
Machine weight
5.100 kg
Machine size (L x B x H), approx.
2,80 x 1,80 x 1,85 m

Accessories

Normal equipment

  • Collet chuck for main spindle
  • KITAGAWA hydraulic B-206, for second spindel diameter 169 mm
  • Tool Eye (automatic)
  • C-axis
  • Synchronized of the main- and second spindle
  • Front door interlock
  • Double foot switch
  • Coolant-system
  • Machine work light
  • PCMCIA-Interface
  • Floppy disk drive
  • Manuals





Optional equipment

  • Hydrafeed barfeeder, Typ: Multifeed MX-1B
  • Interface für barfeeder
  • Automatic parts catcher
  • Synchronized tapping by rotary tool
  • Automatic power OFF
  • CNC Performance option package, package contains:
    • Application macro (100 variables G65-G67)
    • Application macro (600 variables)
    • EIA/ISO input function
    • Polar coordinate input (G122/G123)
    • Supplemental workpiece coordinate system
    • Drawing data - direct input function
  • High pressure coolant
  • CROMAR chip conveyor
  • 10 pieces static tool-holders
  • 2 pieces rotary tool-holders
