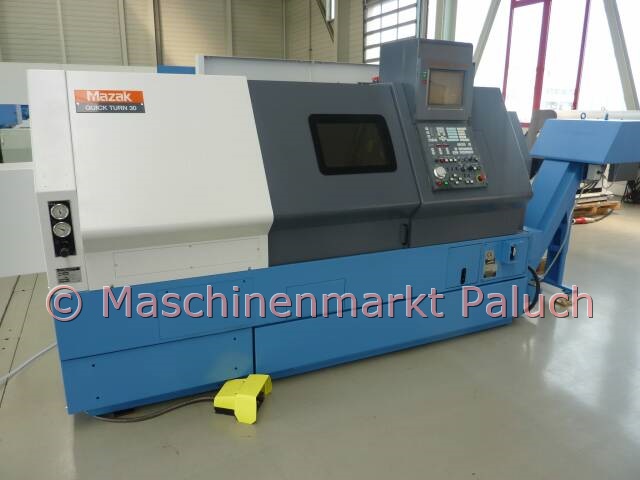

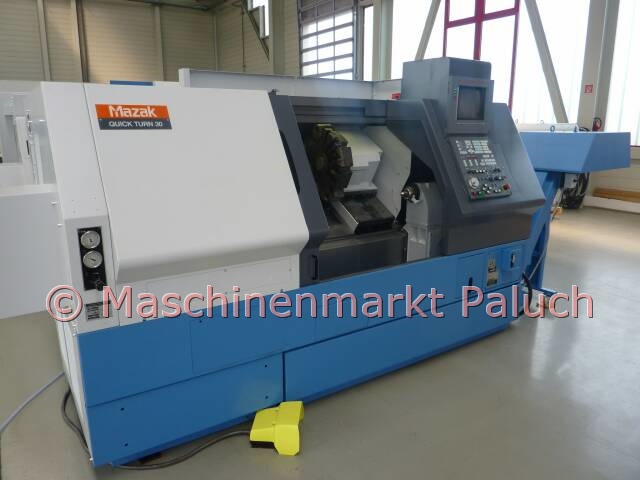

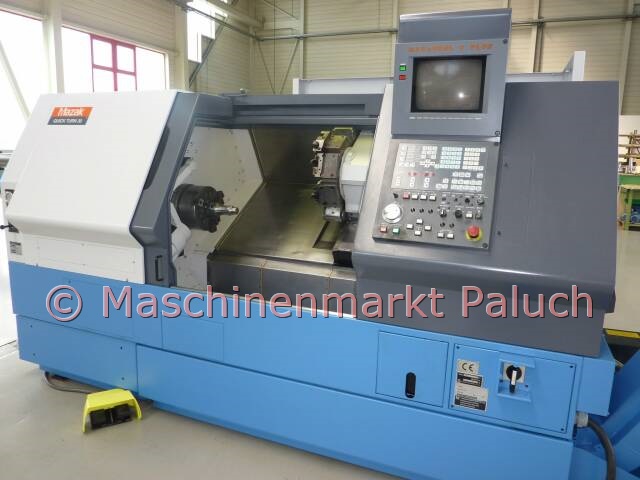

MAZAK Quick Turn N 30B Universal 1000

Inventory Number
1392
Machine Type
CNC-Lathe
Year of Construction
1998

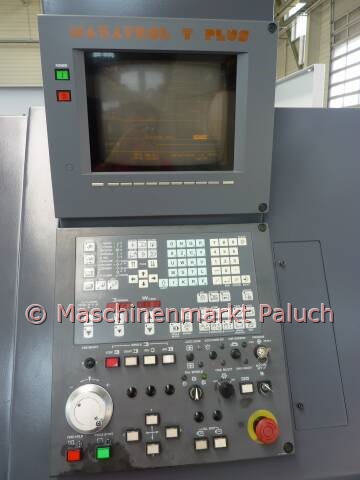

Control
Mazatrol T-Plus / Monochrom
Due to your privacy settings, you cannot view this content.

YouTube Preview

We need your consent for Connection to YouTube



Technical data

Work-capacity

Max. swing diameter
510 mm
Max. machining diameter
320 mm
Max. machining length
951 mm
Max. bar material diameter
70 mm

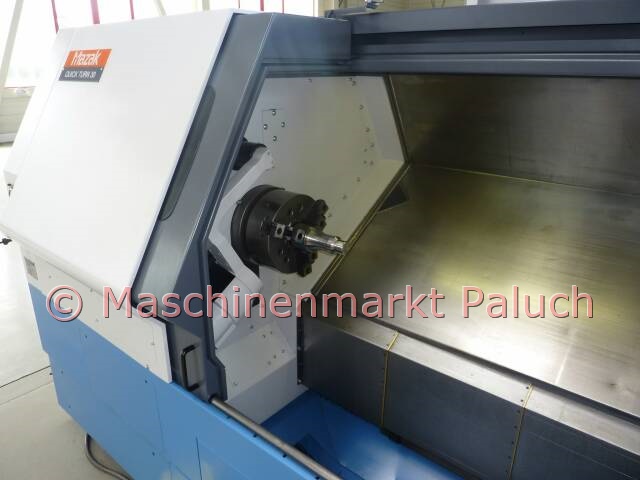

Main-spindle

Spindle speed
33 – 3.300 RPM
Main spindle motor
22 kW
Max. torque
432 Nm
Spindle bore
80 mm

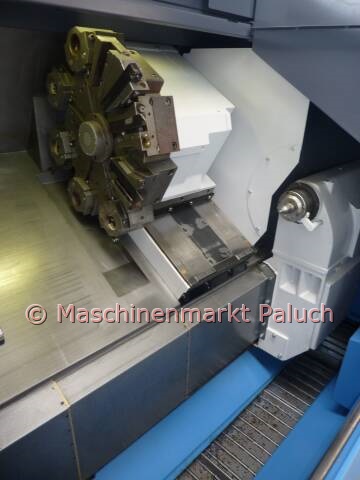

Turret

Turret tool capacity
16

Travel

X-axis stroke
200 mm
Z-axis stroke
1.020 mm

Feedrate

Rapid traverse rate:
X-axis
20 m/min
Z-axis
25 m/min

Tailstock

Tailstock center
MK 5
Tailstock travel
835 mm
Tailstock quill stroke
130 mm

Machine-data

Electrical power supply
48 KVA
Machine weight
5.300 kg
Machine size (L x B x H), approx.
2,80 x 1,95 x 1,95 m

Accessories

Normal equipment

  • KITAGAWA hydraulic chuck B-210, diameter 254 mm
  • Tool Eye (automatic)
  • Front door interlock
  • Double foot switch
  • NC – tailstock
  • Coolant-system
  • Fully-enclosed front cover
  • Interface for MAZAK Mikro disk and MSK
  • Machine work light
  • Manuals

Optional equipment

  • Auto cuck jaws open/close M06/M07
  • High pressure coolant
  • MAYFRAN chip conveyor
  • Some tool-holders for 8-station drum turret
