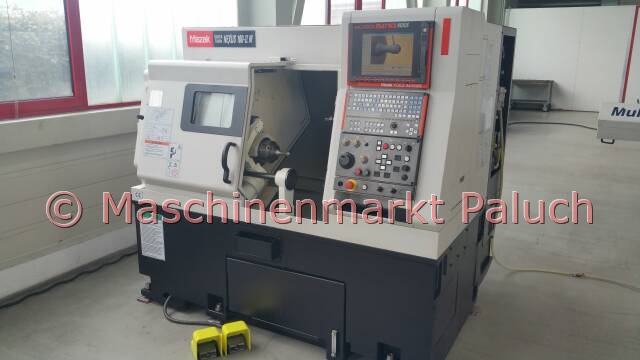

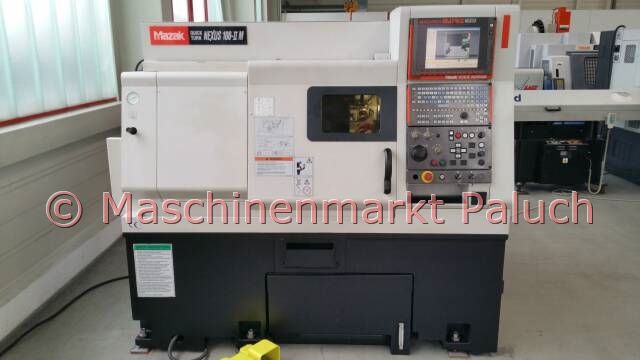

MAZAK Quick Turn Nexus 100-II M

Inventory Number
1414
Machine Type
CNC-Lathe
Year of Construction
2007
Control

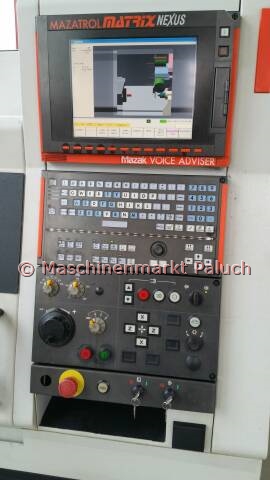

Mazatrol Matrix

Technical data

Work-capacity

Max. swing diameter
550 mm
Max. machining diameter
280 mm
Max. machining length
334 mm
Max. bar material diameter
51 mm

Main-spindle

Spindle speed
35-6.000 RPM
Main spindle motor
11 kW
Max. torque
184 Nm
Spindle nose
A2 – 5 ''
Spindle indexing increments
0,001 °

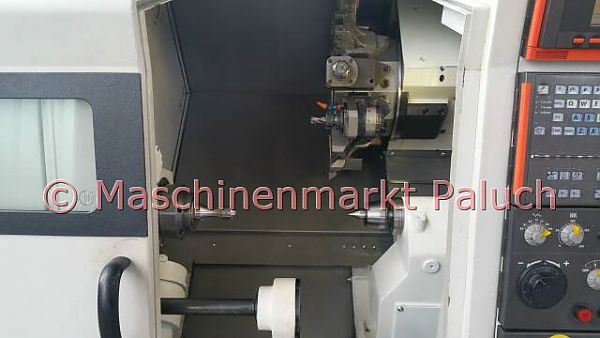

Turret

Turret tool capacity
12

Rotary tools

Rotary tool spindle speed
25-4.500 RPM
Power
5,5 kW
Max. torque
35 Nm

Travel

X-axis stroke
185 mm
Z-axis stroke
385 mm

Feedrate

Rapid traverse rate:
X-axis
30 m/min
Z-axis
33 m/min
C-axis
400 RPM

Tailstock

Tailstock center
MK 4
Tailstock travel
350 mm

Machine-data

Electrical power supply
22,8 KVA
Machine weight
3.800 kg
Machine size (L x B x H), approx.
2,10 x 1,70 x 2,00 m

Accessories

Normal equipment

  • HAINBUCH hydraulic collet chuck
  • Tool presetting (MAZAK Tool Eye System)
  • C-Axis
  • Double foot switch for opening / closing of the chuck
  • Confirmation of the feed-state (open/сlosed)
  • NC-programmable tailstock
  • Front door lock
  • Complete coolant system
  • Work light
  • User Macro (600 variables)
  • MAZAK Tornado EIA/ISO
  • EIA/ISO Input function
  • Optional stop
  • Tapping function
  • Polar coordinate entry (G122)
  • Direct data input function drawing
  • USB Interface (x 2)
  • LAN Interface
  • Intelligent heat shield
  • Intelligent danger sign
  • MAZAK Language Support
  • Virtual machining
  • Documentation

Optional equipment

  • Interface for barfeeder
  • Automatic parts catcher
  • Spindle overload detection
  • High pressure coolant
  • Chip conveyor
  • 10 static tool-holders
  • 2 rotary tool-holders
