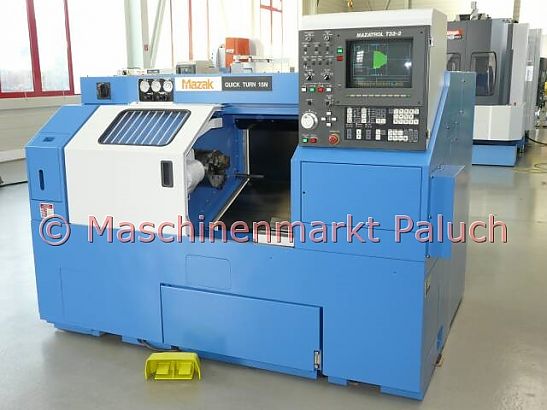

MAZAK Quick Turn 15N Universal

Inventory Number
1405
Machine Type
CNC-Lathe
Year of Construction
1990
Control
Mazatrol T – 32/2

Technical data

Work-capacity

Max. swing diameter
440 mm
Max. machining diameter
225 mm
Max. machining length
444 mm
Max. bar material diameter
51 mm

Main-spindle

Spindle speed
45 – 4.500 RPM
Main spindle motor
15 kW
Max. torque
230 Nm
Spindle nose
A2 – 6 ''
Spindle bore
61 mm

Turret

Turret tool capacity
12

Travel

X-axis stroke
220 mm
Z-axis stroke
510 mm

Feedrate

Rapid traverse rate:
X/Z-axis
30 m/min
X/Z-axis
5.000 mm/min

Tailstock

Tailstock center
MK 4
Tailstock travel
460 mm
Tailstock quill stroke
130 mm

Machine-data

Electrical power supply
41,3 KVA
Machine weight
4.300 kg
Machine size (L x B x H), approx.
2,50 x 1,60 x 1,80 m

Accessories

Normal equipment

  • KITAGAWA hydraulic-chuck 173E
  • Tool Eye (automatic)
  • Front door interlock
  • Double foot switch
  • NC – tailstock
  • Coolant-system
  • Fully-enclosed front cover
  • Interface for MAZAK Mikro disk and MSK
  • Machine work light
  • Manuals

Optional equipment

  • Auto chuck open/close M06/M07
  • Autom. parts catcher
  • Alarm light for cycle end
  • Chip conveyor
  • Some tool-holders for 12-station drum turret
